Unitube Armored Outdoor Cable

  1. جزئیات عمومی
    Application:

    Adopted to Outdoor distribution.
    Suitable for aerial .pipeline laying method.
    Long distance and local area network communication.

    Characteristics:

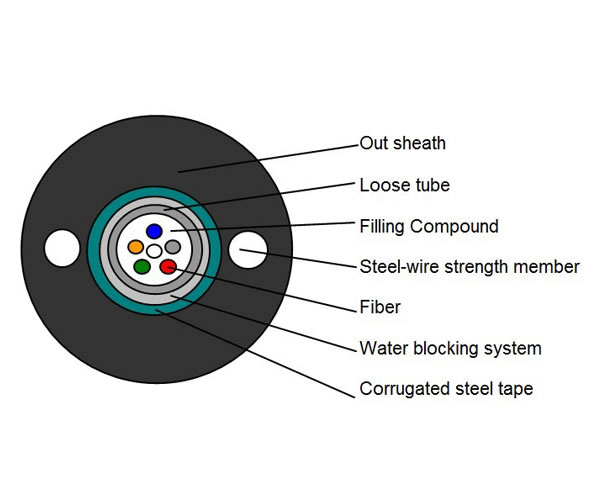

    Steel-wire parallel member.filler protect tube fiber steel tape armored.
    Excellent mechanical and environmental performance.
    compact structure.light weight.
    can be installed conveniently and operated simply.

  2. Technical Info

    Technical Parameters:

    Cable Count Out sheath
    Diameter
    Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (KG) short term long term short term long term short term long term (℃)
    2 8.3 78.00 1500 600 1000 300 20D 10D -40+60
    4 8.3 78.00 1500 600 1000 300 20D 10D -40+60
    6 8.3 78.00 1500 600 1000 300 20D 10D -40+60
    8 8.3 78.00 1500 600 1000 300 20D 10D -40+60
    10 8.3 78.00 1500 600 1000 300 20D 10D -40+60
    12 8.3 78.00 1500 600 1000 300 20D 10D -40+60
  3. Specifications
    Optical Characteristics:
    Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C) B1.1:Conventional fiber
    G.652D B2: Zero  dispersion shifted
    G.655 B1.2 :Cut-off wavelength shifted
    G.657(A1、A2 、B3) B4: Main technical data for positive
    dispersion shifted single-mode fiber
