Non-metallic Non-armored Cable

  1. General Details
    Application:

    Adopted to Outdoor distribution.
    Adopted to trunk power transmission system.
    access network and local network in high electromagnetic interfering places.

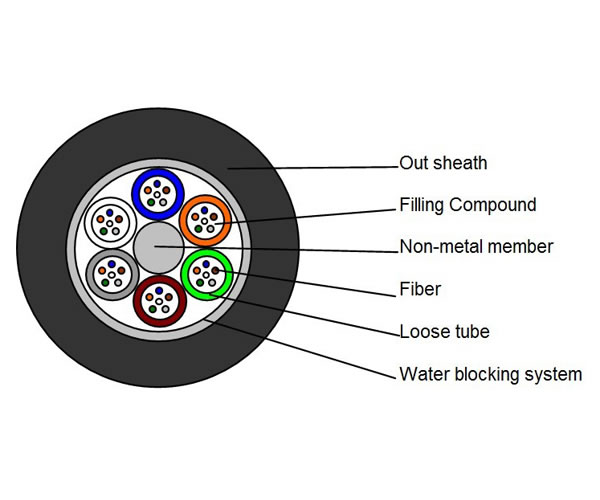

    Characteristics:

    Non-metal strength member.
    Filler protect loose tuber fiber.
    Non-metal strength has an excellent anti-electromagnet ability.

  2. Technical Info

    Technical Parameters:

    Cable Count Out sheath
    Diameter
    Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (KG) short term long term short term long term short term long term (℃)
    24 9.8 65.00 1500 600 1000 300 20D 10D -40+60
    36 9.8 65.00 1500 600 1000 300 20D 10D -40+60
    42 9.8 65.00 1500 600 1000 300 20D 10D -40+60
    48 9.8 65.00 1500 600 1000 300 20D 10D -40+60
    60 9.8 65.00 1500 600 1000 300 20D 10D -40+60
    72 10.5 85.00 1500 600 1000 300 20D 10D -40+60
    96 14.5 145.0 1500 600 1000 300 20D 10D -40+60
    144 18.3 185.0 1500 600 1000 300 20D 10D -40+60
  3. Specifications
    Optical Characteristics:
    Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C) B1.1:Conventional fiber
    G.652D B2: Zero  dispersion shifted
    G.655 B1.2 :Cut-off wavelength shifted
    G.657(A1、A2 、B3) B4: Main technical data for positive
    dispersion shifted single-mode fiber
