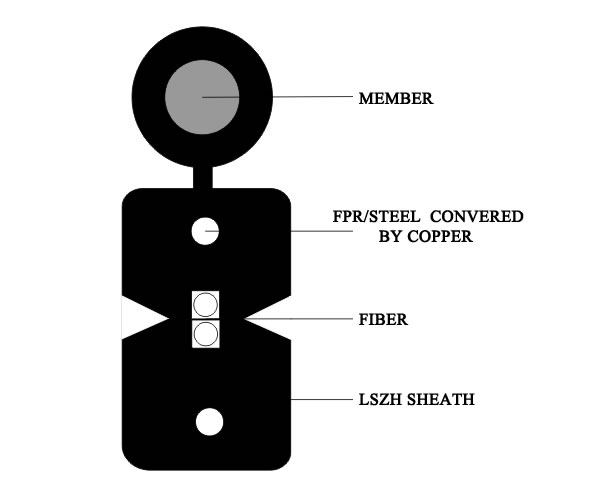

FTTH 2 Core (self-support)

  1. General Details
    Characteristics:

    Fiber-to-the-home broadband connections promise the next generation in connectivity to consumers

  2. Technical Info

    Technical Parameters:

    Cable Count Out sheath
    Diameter
    Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (KG) short term long term short term long term short term long term (℃)
    2 5.3*2.0 21.7 600 200 1000 300 20D 10D 40
  3. Specifications
    Optical Characteristics:
    Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C) B1.1:Conventional fiber
    G.652D B2: Zero  dispersion shifted
    G.655 B1.2 :Cut-off wavelength shifted
    G.657(A1、A2 、B3) B4: Main technical data for positive
    dispersion shifted single-mode fiber
