Flat Twin Duplex Military Tactical Indoor Cable

  1. جزئیات عمومی
    Application:
    • Adopted to indoor distribution..
    • As pigtail of communication equipment.
    • Suitable for communication equipment served.
    • Can be installed conveniently and perated simply.

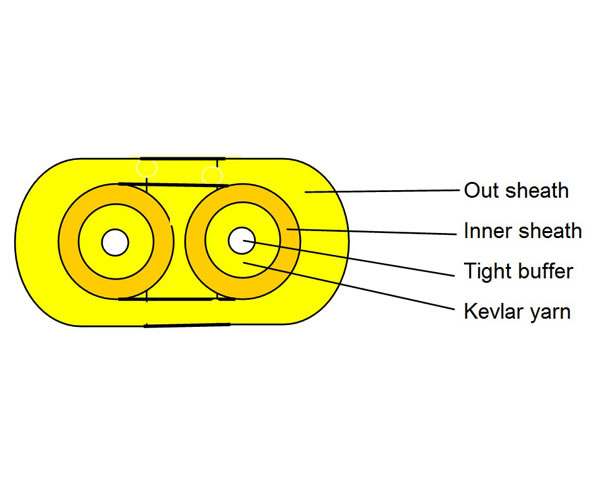

    Characteristics:
    • Two single-fiber as basic unit .flat twin configuration.
    • Single-cable with independent strength member.
    • Tight buffer.(900um or 600um)
  2. Technical Info

    Technical Parameters:

    Out sheathDiameter Tight bufferDiameter Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (MM) (KG) short term long term short term long term short term long term (℃)
    3.0×5.0 1.8 56.00 800 300 1000 500 20D 10D -20+60
    3.2×5.6 2.0 68.00 800 300 1000 500 20D 10D -20+60
    5.0×8.0 2.8 87.00 800 300 1000 500 20D 10D -20+60
  3. Specifications
    Optical Characteristics:
    Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C) B1.1:Conventional fiber
    G.652D B2: Zero  dispersion shifted
    G.655 B1.2 :Cut-off wavelength shifted
    G.657(A1、A2 、B3) B4: Main technical data for positive
    dispersion shifted single-mode fiber
