Flat Twin Duplex Military Tactical Armored Indoor

  1. General Details
    Application:
    • Adopted to indoor distribution.
    • As pigtail of communication equipment.
    • Suitable for communication equipment served.
    • Can be installed conveniently and perated simply.
    Characteristics:

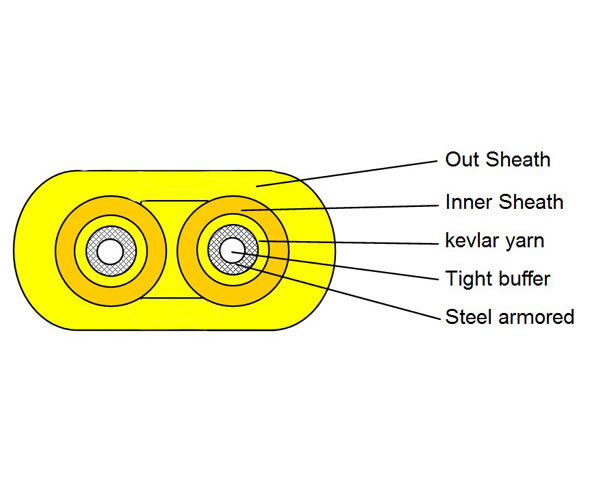

    • Two single-fiber as basic unit.flat twin configuration.
    • Single-cable with 0.6 tight buffer.kevlar yarn steel armored flexible or out sheath independent strength member.
    • Excellent mechanical and environmental performance.
  2. Technical Info

    Technical Parameters:

    Out sheathDiameter Tight bufferDiameter Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (MM) (KG) short term long term short term long term short term long term (℃)
    3.0×5.0 2.0 34.00 1000 300 1000 500 20D 10D -20+60
    4.0×7.0 2.8 42.00 1000 300 1000 500 20D 10D -20+60
  3. Specifications
    Optical Characteristics:
    Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C) B1.1:Conventional fiber
    G.652D B2: Zero  dispersion shifted
    G.655 B1.2 :Cut-off wavelength shifted
    G.657(A1、A2 、B3) B4: Main technical data for positive
    dispersion shifted single-mode fiber
