Distribution Tight Buffer Armored Fiber Optical Cable

  1. جزئیات عمومی
    Application:
    • Adopted to indoor and Outdoor distribution.
    • As pigtail of communication equipment.
    • Suitable for communication equipment served.
    • Suitable for floor connection.
    Characteristics:
    • Hight strength kevlar yarn member.
    • More tight buffered design.

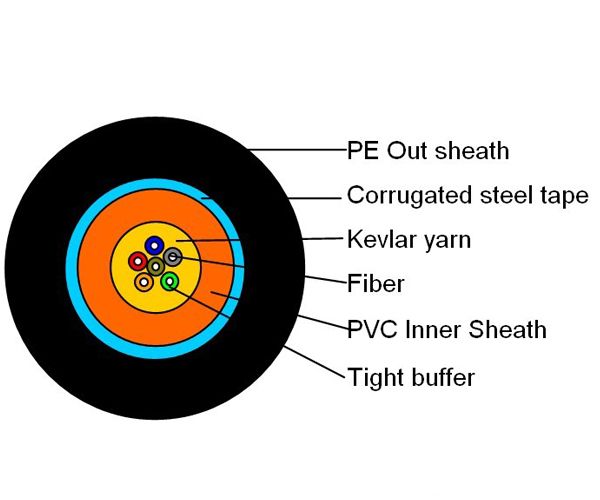

    • Round construction.
    • Saft. Easy to strip.
    • Steel armored flexble tube.increase the cable’s twist
  2. Technical Info
    Technical Parameters:
    Cable Count Outside
    Diameter
    Tight buffer
    Diameter
    Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (MM) (KG) short term long term short term long term short term long term (℃)
    10.0 0.9 76.00  1500 600 1000 200  20D  10D -20+60



  3. Specifications
    Optical Characteristics
    Fiber Sort Multimode G.651 A1a:50/125          Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C、D) B1.1:Conventional fiber
    G.653 B2: Zero  dispersion shifted
    G.654 B1.2 :Cut-off wavelength shifted
    G.655 B4: Main technical data for positive
    dispersion shifted single-mode fiber
