Breakout Tight Buffer Optical Cable

Breakout Tight Buffer Optical Cable(GJFPV)

  1. General Details
    Application:
    • Indoor level and vertical laying.ceiling laying surface laying etc.
    • Suitable for patch cords and pigtails .

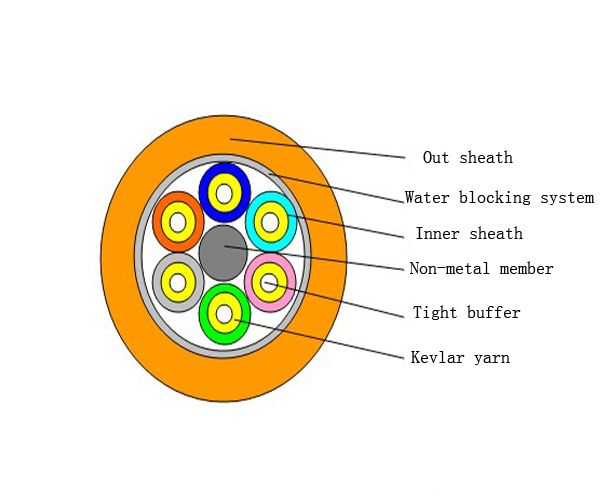

    Characteristics:
    • Multi single-cable design.
    • Single-cable with independent strength member.
    • Non-matal central strength member.
    • Fiber count:2~24
  2. Technical Info

    Technical Parameters:

    Cable Count Out sheath Diameter Innter sheath diameter Weight Minimmum allowable Tensile Strength(N) Minimum allowable Crush Load(N/100mm) Minimum Bending Radius(MM)
    Core (mm) (mm) (Kg/Km) Short term long term Short term long term Short term long term
    2 7.0 2.0 45.0 1500 500 1000 300 20D 10D
    4 7.0 2.0 47.0 1500 500 1000 300 20D 10D
    6 8.3 2.0 64.0 1500 500 1000 300 20D 10D
    8 9.5 2.0 88.0 1500 500 1000 300 20D 10D
    12 11.5 2.0 105.0 1500 500 1000 300 20D 10D
    24 13.5 2.0 142.0 1500 500 1000 300 20D 10D
  3. Specifications
