Aluminum Stranded Cable

  1. جزئیات عمومی
    Application:
    • Adopted to Outdoor distribution.
    • Suitable for aerial .pipeline laying method.
    • Long distance and local area network communication.
    Characteristics:

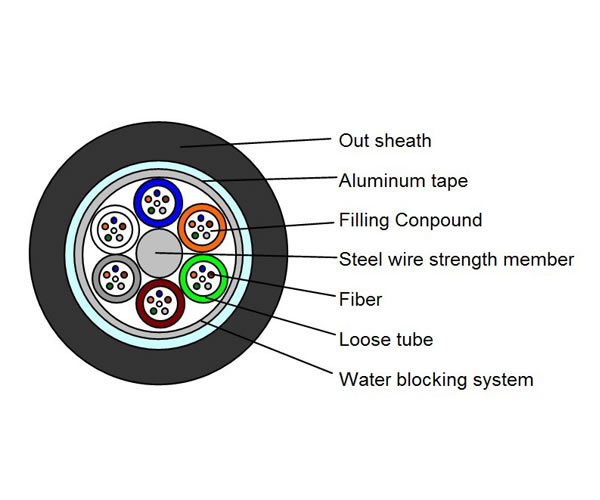

    • Steel wire strength.filler protect tube fiber.Aluminum tape armored.
    • Good ultra violet radiation resistant property.
    • Good moisture-resistance.
  2. Technical Info

    Technical Parameters:

    Cable Count Out sheath
    Diameter
    Weight Minimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM) (KG) short term long term short term long term short term long term (℃)
    24 10.5 90.00 1500 600 1000 300 20D 10D -40+60
    36 10.5 90.00 1500 600 1000 300 20D 10D -40+60
    42 10.5 90.00 1500 600 1000 300 20D 10D -40+60
    48 10.5 90.00 1500 600 1000 300 20D 10D -40+60
    60 10.5 90.00 1500 600 1000 300 20D 10D -40+60
    72 13.5 160.00 1500 600 1000 300 20D 10D -40+60
    96 13.5 160.0 1500 600 1000 300 20D 10D -40+60
    144 15.5 180.0 1500 600 1000 300 20D 10D -40+60
  3. Specifications
    Optical Characteristics:
    Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
    A1b:62.5/125
    Singlemode G.652(A、B、C) B1.1:Conventional fiber
    G.652D B2: Zero  dispersion shifted
    G.655 B1.2 :Cut-off wavelength shifted
    G.657(A1、A2 、B3) B4: Main technical data for positive
    dispersion shifted single-mode fiber
